Synthmas — overview

Synthea is an open-source synthetic patient generator from MITRE. Synthmas is the dataset that comes out when you run Synthea against the population of Massachusetts — synthetic patients with synthetic encounters, conditions, observations, medications, devices, and so on. No real-patient data is involved, which makes it the ideal demonstration corpus for the engine.

The Synthmas extract used in this walkthrough ships as a directory of CSV files — one per source table — which is exactly what the engine's CSV driver consumes.

Get the bundle

The Synthmas CSV + Rabbit-in-a-Hat bundle is a free download from rook-it.com/downloads — a single archive with the source CSVs, the single-RiaH file used in this walkthrough, and a working etl.conf. No login required for the latest version. With the Free tier and no licence file, you can have a populated CDM out of the box and follow this guide step-by-step against your own running engine.

Already have an engine install? Grab the overlay tarball synthmas-single-RiaH-1.0.21.tar.gz instead — the RiaH, Usagi maps, and etl.conf only (no CSVs). Overlay it onto the engine artefact with tar xzf synthmas-single-RiaH-1.0.21.tar.gz --strip-components=1, then fetch the source CSVs with bin/setup-synthmas.sh.

Source schema

The relevant source tables for this walkthrough:

Source file	Description
patients.csv	One row per patient — id, dob, gender, race, address.
organizations.csv	Provider organisations — also addresses.
providers.csv	Individual providers — addresses again.
encounters.csv	Visits between patients and providers.
conditions.csv	Conditions diagnosed during encounters.
procedures.csv	Procedures performed during encounters.
observations.csv	Observations recorded during encounters, with units.
medications.csv	Drug exposures.
devices.csv	Devices issued to patients, with UDI codes.
payers.csv	Insurance organisations — one row per payer, with a name column used as the source code in the payers Usagi map.
payer_transitions.csv	One row per (patient, payer, year-range) — the input that drives payer_plan_period.

Target CDM

The walkthrough populates a representative slice of the OMOP CDM — twelve real CDM tables plus three that are derived rather than read directly from any single source:

CDM table	Notes
location	Addresses extracted from several source tables. Forces normalisation.
person	One row per patient.
care_site	Provider sites.
provider	Individual providers.
visit_occurrence	Encounters → visits.
visit_detail	Sub-visits within an encounter.
condition_occurrence	Diagnoses with SNOMED-coded concepts.
procedure_occurrence	Procedures with SNOMED codes.
observation	Observations with mode-dispatch into value_as_number / value_as_string.
measurement	Numeric measurements with LOINC vocabulary lookups.
drug_exposure	Medications, with a date-arithmetic pattern for the end date and UDI parsing.
device_exposure	Devices with a fixed-interval end date and UDI parsing.
death	Derived — built from a LeftJoin of patients with conditions.
observation_period	Derived — observation windows tied back to person.
payer_plan_period	Derived — driven by payer_transitions.csv, LeftJoin-ed against payers.csv for the payer name; payer concept id via Usagi map.

The target database in this walkthrough is PostgreSQL, with the CDM tables in the omop_cdm schema.

Mapping plan

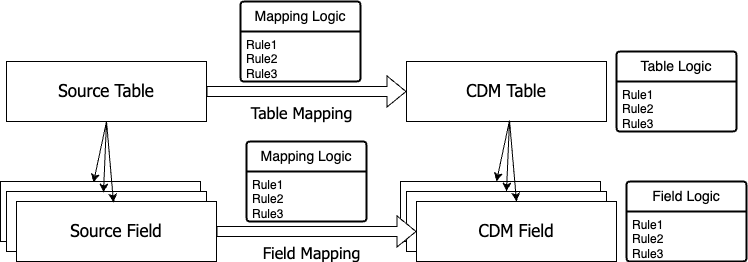

A mapping plan starts in Rabbit-in-a-Hat:

1. Draw the source-to-CDM table arrows for the tables you intend to populate. The simple cases (one source → one CDM) need no rule at all.
2. Draw the field-to-field arrows where source and CDM types match.
3. Add a logic: rule on a CDM field where a transformation is needed (type cast, padding, vocabulary lookup, …).
4. Add a logic: rule on a CDM table where a table-level operation is needed (Normalize, DependOn, Join, LeftJoin).

Walkthrough order

The pages below build up techniques by introducing one or two new patterns each:

• The location table — Normalize, type mismatches, padding, defensive Truncate, hard-coded fields. The warm-up.
• The person table — vocabulary maps with default
• assert, date deconstruction, ID generation, cross-table lookups.
• Clinical events — visit_occurrence, condition_occurrence, procedure_occurrence. Selector based on a class field; pre-map + VocabMap for codes that aren't in the standard vocabulary; the universal type_concept_id pattern.
• Values and dates — observation, measurement, drug_exposure, device_exposure. Mode-dispatch on :type, date arithmetic for end dates, UDI regex parsing, null fallback with Selector.
• Derived tables — death, observation_period, payer_plan_period. LeftJoin to derive a CDM table from two source tables (twice — death joins on a shared date, payer_plan_period joins a fact table against a lookup); cross-CDM foreign keys with GetCDMTableId(@person) + AssertNot(NULL).
• Useful patterns — vocabulary lookups, Usagi maps, conditional chaining: the toolkit you'll reach for over and over.
• FAQ — questions that come up the first time you watch run.log (record counter past 150,000, throughput swings, queue labels, unmapped concept ids).

How to follow along

If you want to run the example yourself:

1. Get the Synthmas bundle (or generate your own with synthea -p 50 Massachusetts).
2. Drop the CSVs into etc/etl-engine.d/db/ of the engine artefact — see Folder Layout.
3. The bundled Rabbit-in-a-Hat file goes alongside etl.conf.
4. Run bin/run-etl-engine.sh and watch logs/<table>.log for the results.
