Folder Layout

Unzipping etl-engine-X.Y.Z.tar.gz creates the directory structure below. The engine expects this layout — keep the names intact and the shipped scripts will work without configuration changes.

bin/install-etl-engine.sh    # Loads the Docker image
bin/run-etl-engine.sh        # Runs the engine container

data/etl-engine.docker       # Docker image bundled with this release

etc/etl-engine/etl.conf      # The engine configuration file
etc/etl-engine/              # Drop the Rabbit-in-a-Hat file here too

etc/etl-engine.d/db          # CSV source files (when source driver is "csv")
etc/etl-engine.d/usagi       # Usagi mapping files
etc/etl-engine.d/vocab       # Athena vocabulary zips (input to "populate
                             # vocabulary" automation)
etc/etl-engine.d/vocab.backup # Where processed Athena zips are moved
etc/etl-engine.d/indexes     # Persisted indexes and sequences from
                             # StoreIndexMap / StoreSequence

logs/                        # Log files written by the engine
                             # (cleared at the start of every run)

licenses/                    # Open-source library licenses

claude-skill/etl-engine.md   # Claude Code skill — pair with a local
                             # AI assistant for engine-specific help

The claude-skill/ directory

The shipped claude-skill/etl-engine.md is a Claude Code skill — a single Markdown file packaging engine expertise (rule names, log shapes, configuration keys, debugging walkthroughs) for use by a local AI assistant on the system running the engine. See AI assistants for installation.

The rest of the documentation lives online at docs.rook-it.com/etl-engine — not bundled with the release, so the documentation can iterate faster than the engine binary. If you need an offline copy of the full site, mirror it locally with wget --mirror or equivalent.

Inputs into the engine

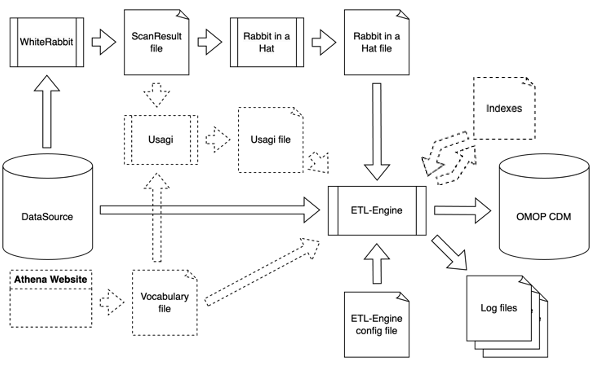

ETL Engine input and output

A typical run combines several artefacts:

  • Source database — CSV files in etc/etl-engine.d/db/, or a connection string to a supported RDBMS (MariaDB / MySQL, PostgreSQL, or SQL Server) configured in etl.conf.
  • OMOP CDM vocabulary — loaded into the destination database. The engine can load it from an Athena zip via the automation.pre.populate vocabulary setting.
  • Usagi files — CSV files used by the UsagiMap rule, stored under etc/etl-engine.d/usagi/.
  • Rabbit-in-a-Hat file — a gzipped JSON file describing the source-to-CDM mapping, stored alongside etl.conf.

Container view of the same paths

The run script mounts the host directories into the container as follows:

Host Container
etc/etl-engine/ /etc/etl-engine (read-only)
etc/etl-engine.d/ /etc/etl-engine.d (read-write)
logs/ /var/log/etl-engine (read-write)

The shipped etl.conf references the container paths (/etc/etl-engine.d/db/, /var/log/etl-engine/, …), which is what you'll see in error messages and log output.

Splitting an ETL across multiple Rabbit-in-a-Hat files

A single ETL does not need to live in one Rabbit-in-a-Hat file. When you split it, the engine can persist indexes and global sequences from one run so the next can pick them up — the typical case is when the first run populates the person table with new IDs, and a later run populates visit_occurrence and needs to map source person IDs back to the CDM person_id it already issued.

Use the StoreIndexMap and StoreSequence table rules in the first run; the same indexes are loaded automatically in subsequent runs from etc/etl-engine.d/indexes/.
